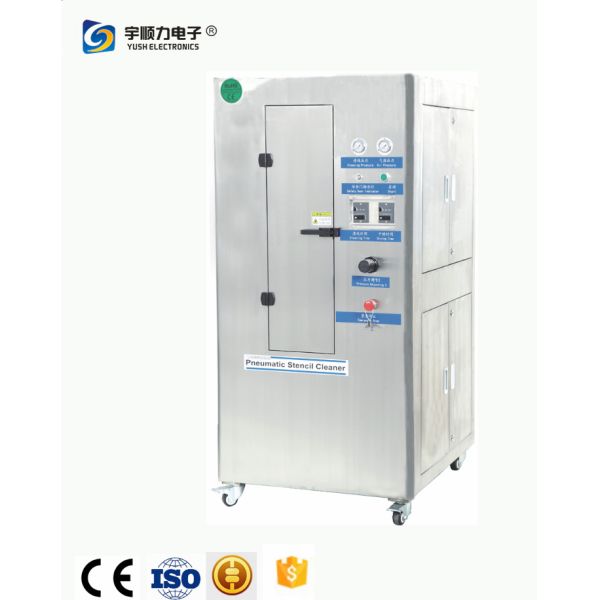

YS-40L 40L Pneumatic Stencil Cleaner for SMT Workshop Stencil Maintenance & Cleaning

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $9,000 / set

Weight : 320 kg

Power : 10 kW

Voltage : 220V/380V

Dimensions : 980mm(L)*700mm(W)*1730mm(H)

Clean liquid capacity : Max 50L, Min 20L

Cleaning fluid volume : 40L

Clean time : 2~4 min

Rinse time : 2~4 min

Dry time : 2~5 min

External air supply : 0.4Mpa~0.6Mpa

Air consumption : 400~600L/Min*2

Air outlet size : Φ125*25mm

Tin filter method : Three class filter(10μm,5μm,1μm)

Material : 304 Stainless steel

Operating pressure : 0.45Mpa

Contact Now

YS-40L 40L Pneumatic Stencil Cleaner for SMT Workshop
Professional stencil maintenance and cleaning system designed for SMT workshop environments.
Key Features
  • Effective removal of solder paste, glue, and other contaminants
  • Stainless steel cabinet with excellent reliability and resistance to acid/alkali cleaning chemistry
  • Completely pneumatic operation eliminates fire risk
  • Closed-loop cleaning system minimizes solvent consumption
  • High precision triple-filtering system (10μm, 5μm, 1μm)
  • Special air exhaust design reduces cleaning chemistry usage
  • Compatible with standard compressor air (operates at 0.45Mpa)
  • One-button operation for easy cleaning and drying process control
YS-40L 40L Pneumatic Stencil Cleaner for SMT Workshop Stencil Maintenance & Cleaning YS-40L 40L Pneumatic Stencil Cleaner for SMT Workshop Stencil Maintenance & Cleaning
Technical Specifications
Application Stencil, glue screen, copper screen
Application Stencil Size Standard 29 inch and below
Clean Liquid Capacity Max 50L, Min 20L
Cleaning Fluid Volume 40L
Cleaning Method Rotary double side pressure injection and high pressure air spraying (cleaning and drying)
Clean Time 2~4 min (stencil and copper net)
Rinse Time 2~4 min (stencil and copper net)
Dry Time 2~5 min
External Air Supply 0.4Mpa~0.6Mpa
Air Consumption 400~600L/Min*2
Air Outlet Size Φ125*25mm
Weight 320Kg
Dimension 980mm(L)*700mm(W)*1730mm(H)
Tin Filter Method Three class filter (10μm, 5μm, 1μm)
Manufacturer Information
YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China. The company specializes in professional PCB separator and PCB depaneling machine electronic equipment machinery.
With advanced production equipment and an experienced development team (half with over 10 years industry experience), YUSH focuses on product quality, safety, and innovation. The company offers various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types.
YUSH products are known for high quality, stable performance, and cost-effectiveness, serving customers worldwide and establishing the company as one of China's largest PCB separator production bases.
